Digital File: Wood Pyrex Lid – CNC and 3D Printing

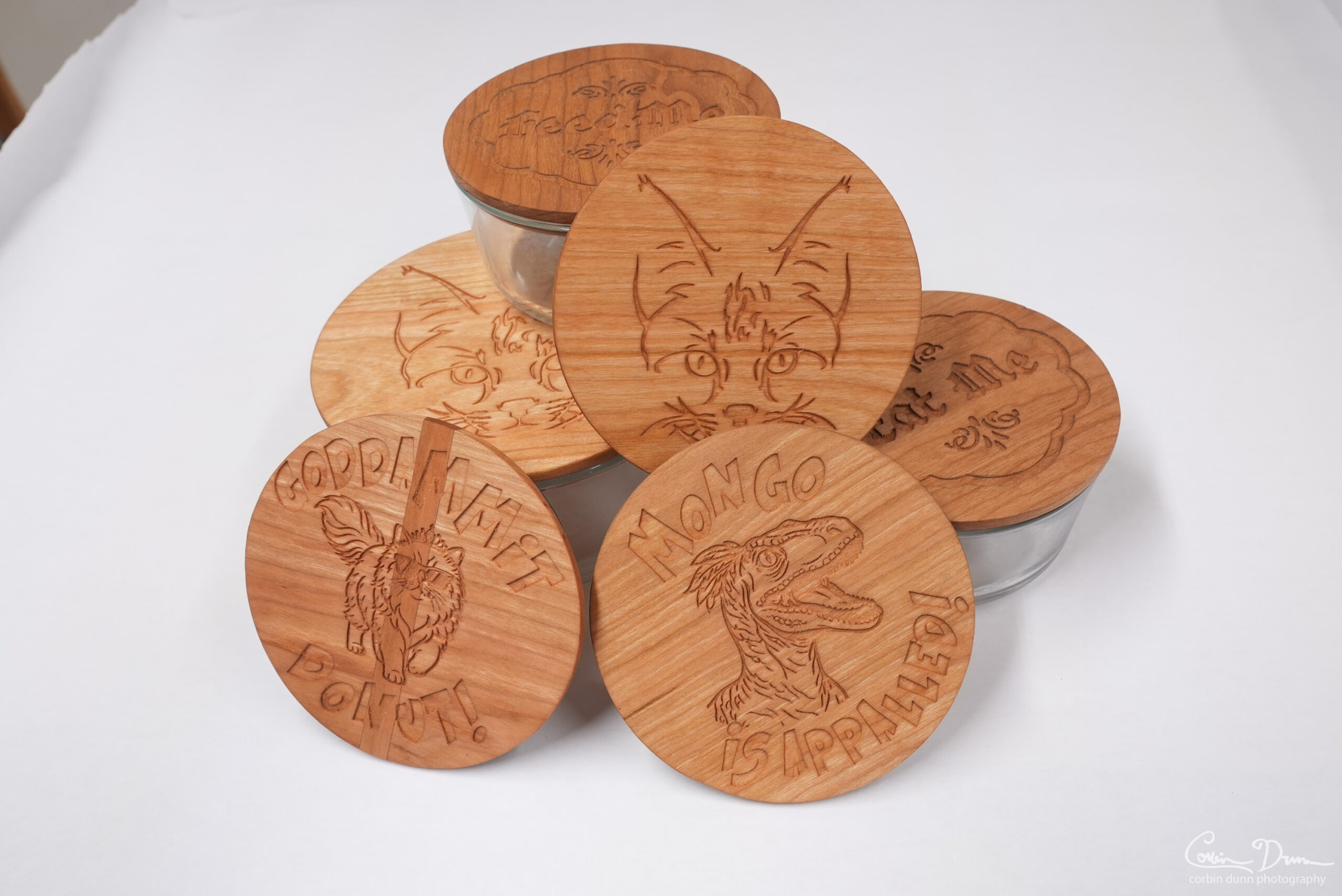

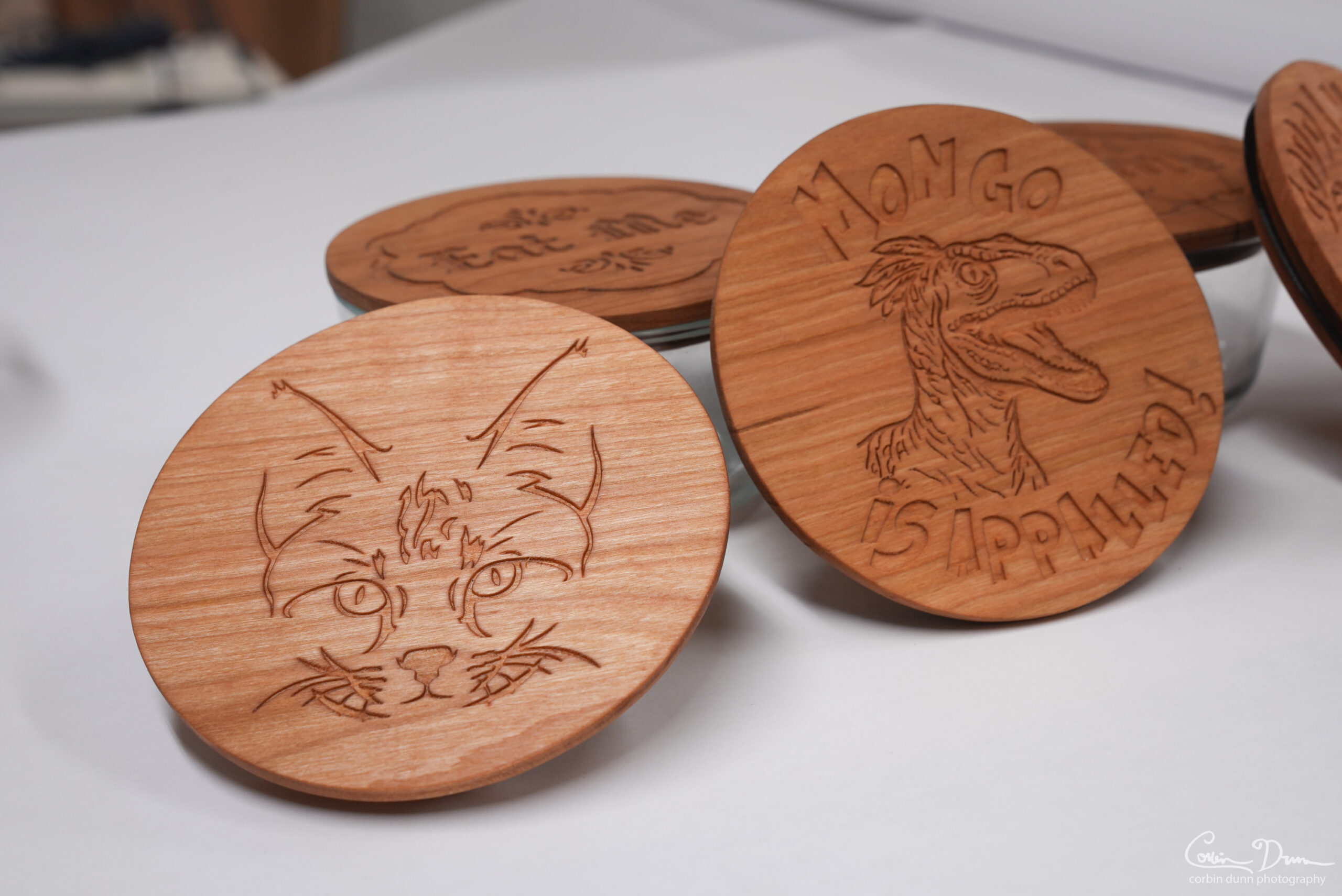

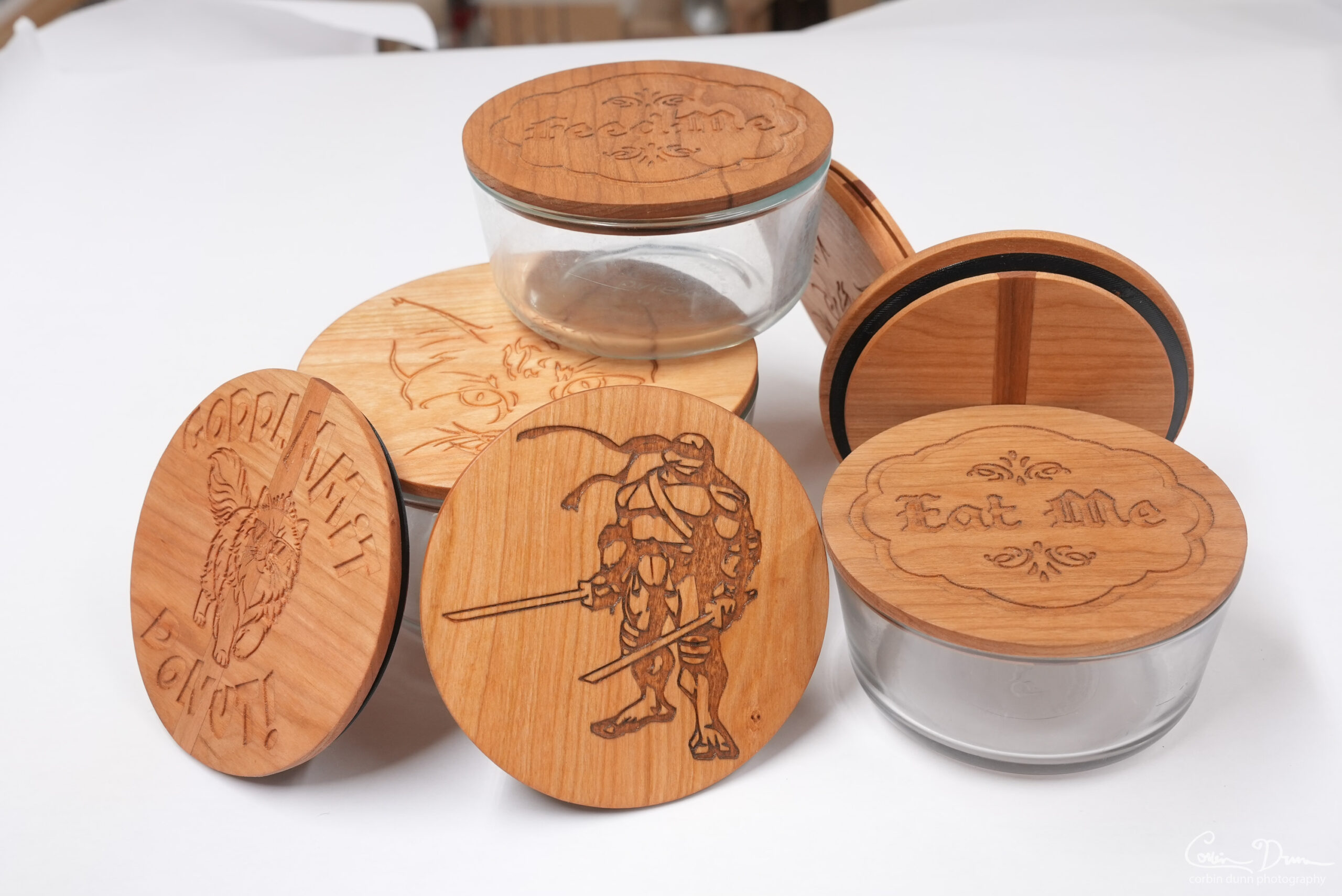

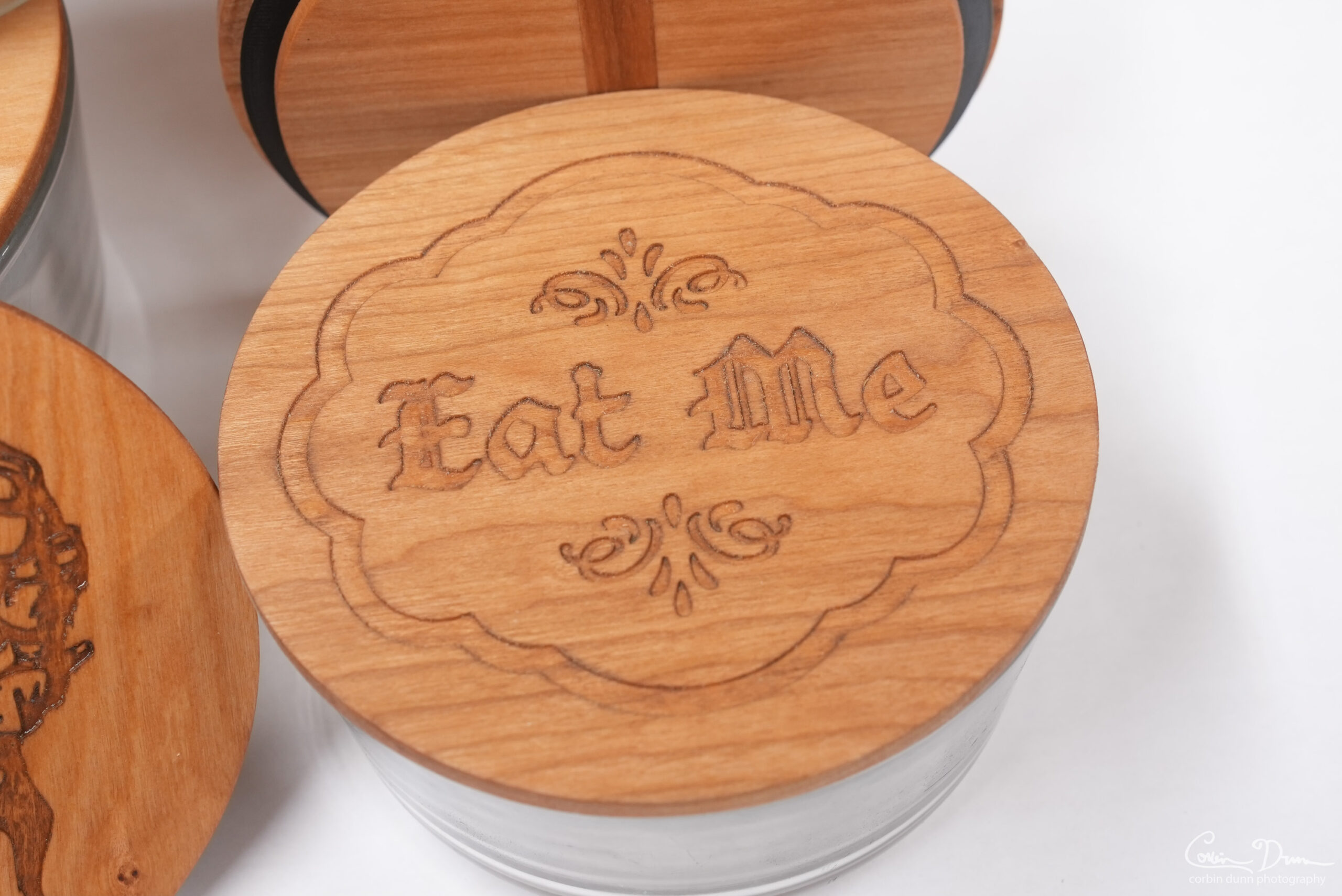

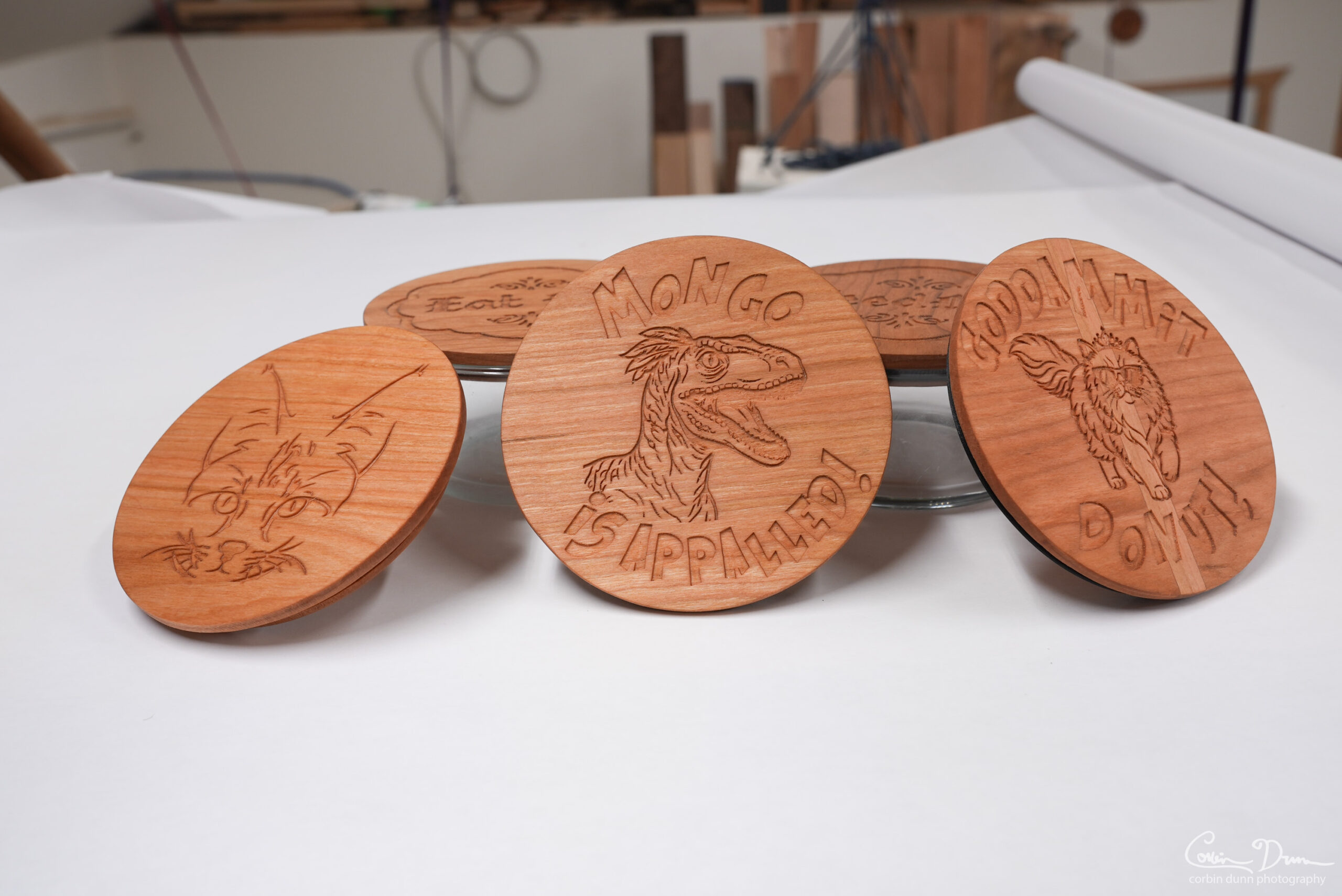

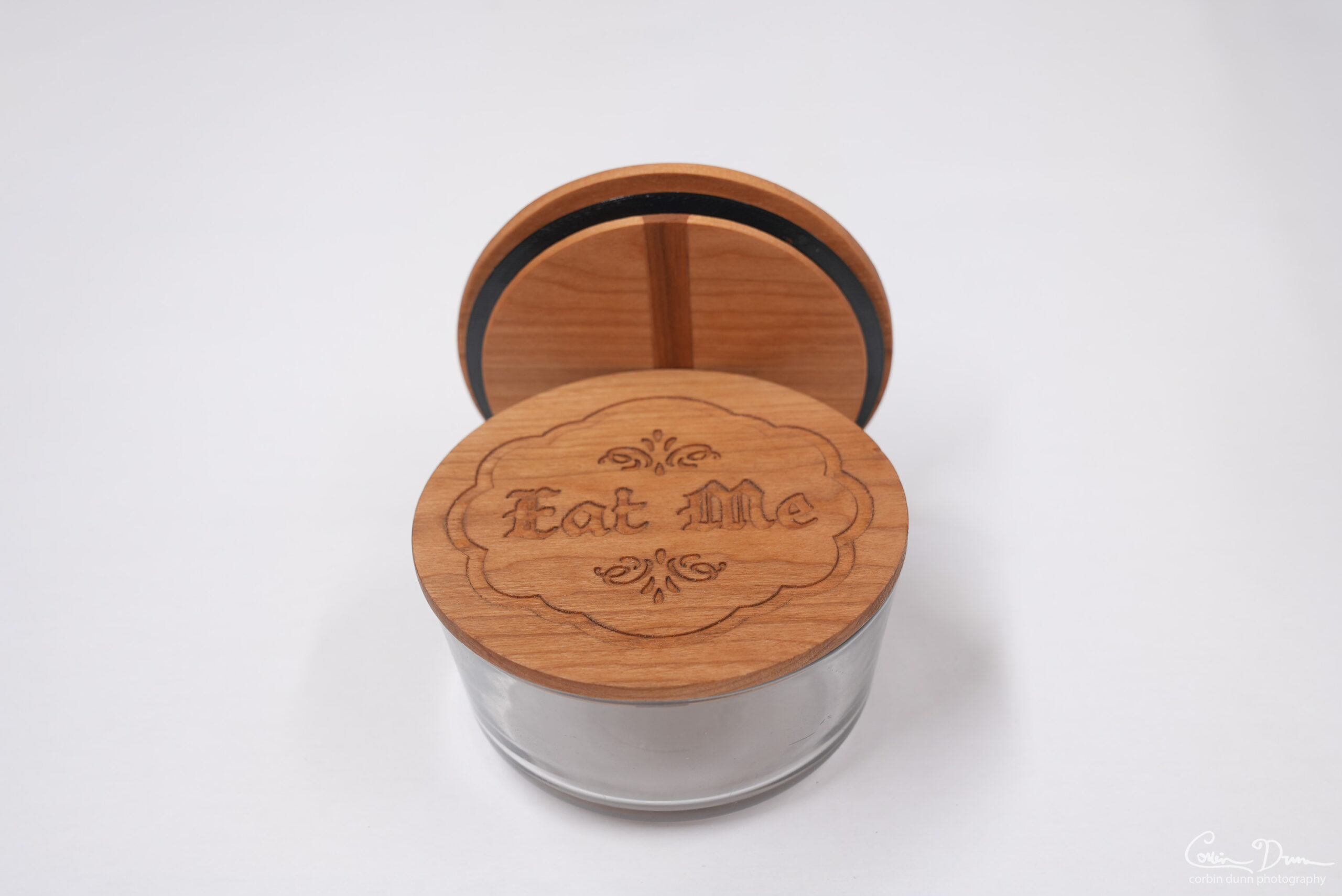

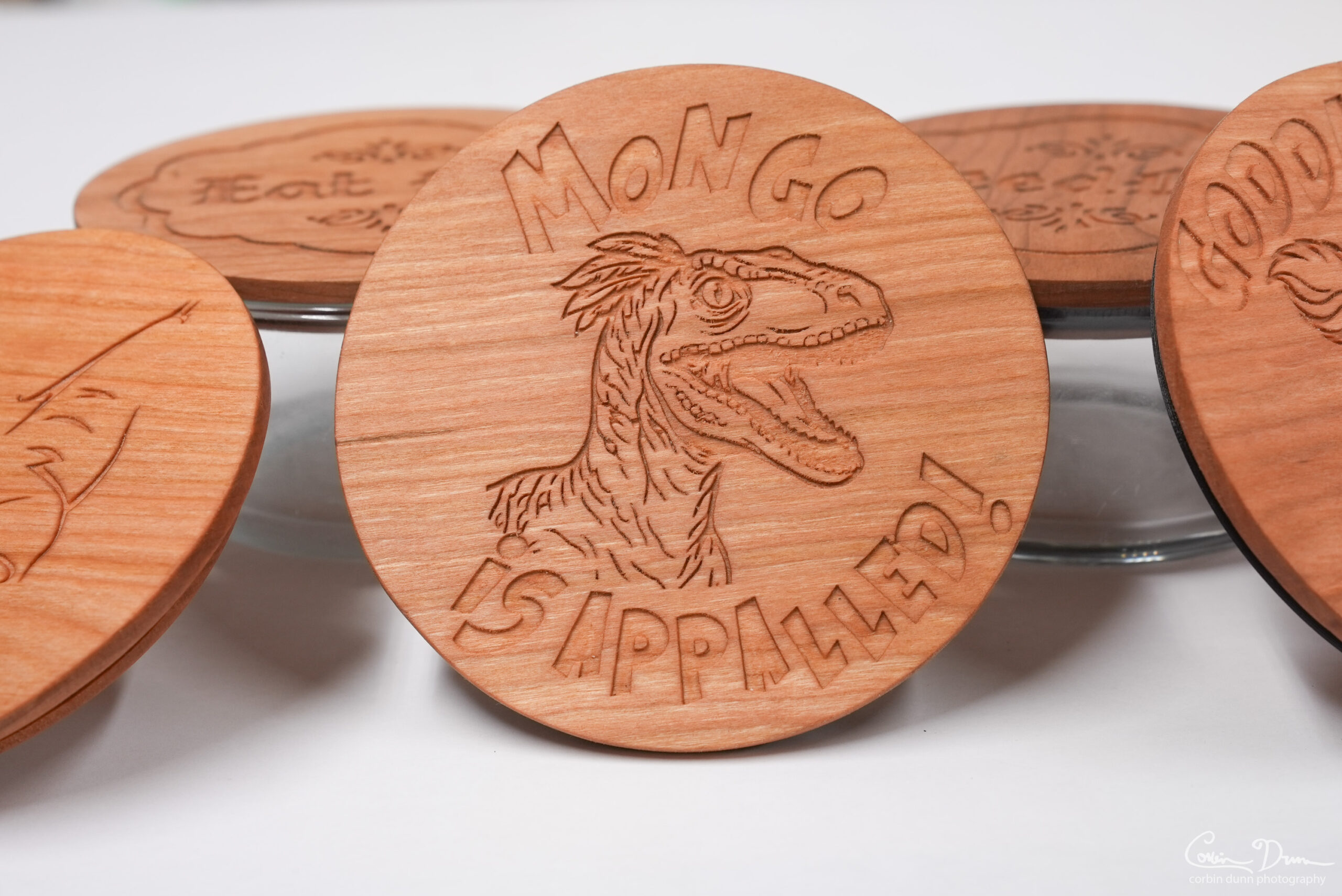

This is my design for a wood pyrex container lid. There are two versions: one for the small 2-cup pyrex container, and another for the larger 1-quart pyrex container. I make no guarantees that these will fit every Pyrex container! Wood will move and swell, and these may not work for you!

NOTES: The Fusion file is setup with all my engrave designs. The VCarve file is not setup for the engravings, you will have to do those yourself. I generally use Fusion. For VCarve, I only tested the “Small 2 Cup” VCarve file, and not the “Quart” file, but it should work based on my measurements in Fusion.  I include my original Adobe Illustrator and DXF files for the engravings that I designed (many are derivatives based off images from the internet).

Build Video: https://youtu.be/IFLnhPahgDk

REQUIREMENTS:

• Autodesk Fusion or Vectric VCarve 12.5 (or higher).  You should be familiar with one of these software programs enough to generate GCode and run it.
• CNC Machine
• 3D Printer

Included:

• PDF Directions file for how to make them.
• Autodesk Fusion file – with Configurations setup for 2 Cup and Quart designs, along with the toolpaths/CAM.
• Vectric VCarve 12.5 files: 2 Cup (tested) and Quart (untested).
• Gasket STL files for 3D printing with TPU – various sizes to test what fits best for you.
• The general designs I did in Adobe Illustrator.

Materials Required:

• 1/4” downcut bit: https://amzn.to/3BVZ0bH  – Freud
• 5.4 Degree Tapered Ball Nose
  • https://amzn.to/4wHkdxW  – Although any TBN around this angle will work
  • Alternative: Get the Freud CNC Bit set: https://amzn.to/3Txt1HP
• Dovetail bit – 14 degree 1/2” – https://amzn.to/4fy97Fh (Or Leigh 120-8)
• 15 Degree V-Bit: https://amzn.to/4oeJ1Zo
• 1/8” upcut bit
  • https://amzn.to/4aGpo8o – Whiteside RU1600
  • Alternative: https://www.ripprecisiontools.com/product-page/1-8-spiral-upcut?srsltid=AfmBOopRl7Fxn2vocakKROC2jnCGK7HrBYIhf0ggGlif5b6b_0fFTxA-
• Optional: 1/4” spiral upcut bit: https://amzn.to/3UcWaFM
• Slotting bit arbor: https://amzn.to/4fOODaa  – Whiteside
• Slotting bit – 1/16” kerf: https://amzn.to/4fD9RaI – Whiteside
• Finish: https://amzn.to/48pusvP
• Double sided tape: https://amzn.to/3UH0ahc
• TPU filament: https://amzn.to/4g55RkO
• Toe Clamp Hold downs to 3d print: https://www.corbinsworkshop.com/shop/low-profile-cnc-toe-clamps-for-t-track-hold-downs-with-nut-tightener-handle-3d-printable-out-of-pla/
• CA Glue
• Waterproof wood glue
